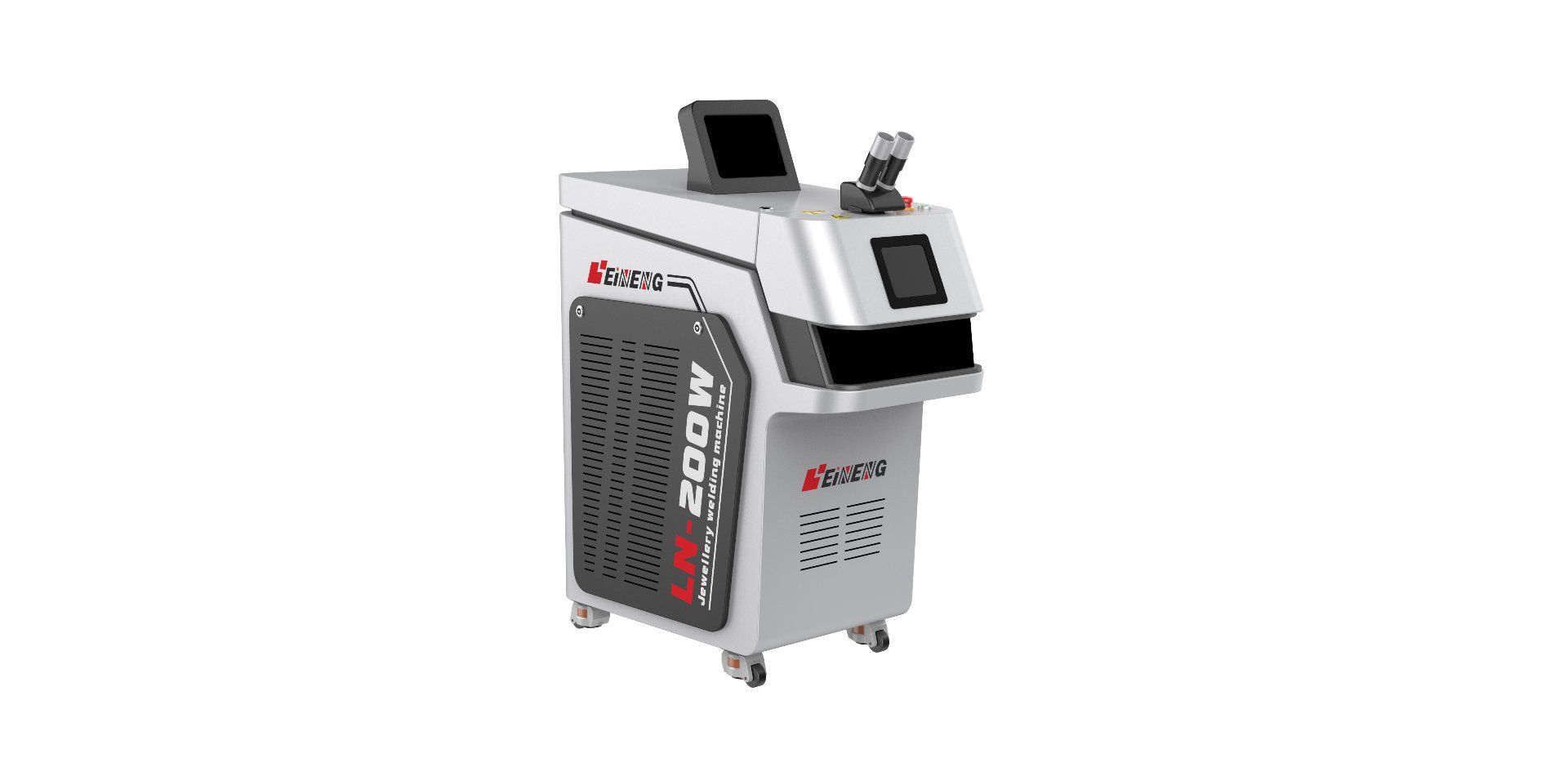

PG-LN-200W Jewellery Welding Workstation
A 200 W-class pulsed Nd:YAG (1064 nm) jewelry laser welder for jewellery manufacturing, repair and precious-metal work. Its Sweet Spot Resonator improves beam quality, reduces noise and keeps maintenance costs low — ideal for daily production in busy workshops.
Five key strengths
Power & laser source
Double-voltage adjustable power supply with original energy-feedback technology; high-quality Nd:YAG single-doped laser at 1064 nm built for continuous duty.
Water + wind cooling
Industrial-grade water cooling combined with wind cooling; anhydrous automatic power-off and high-temperature alarm; quieter, more stable operation.

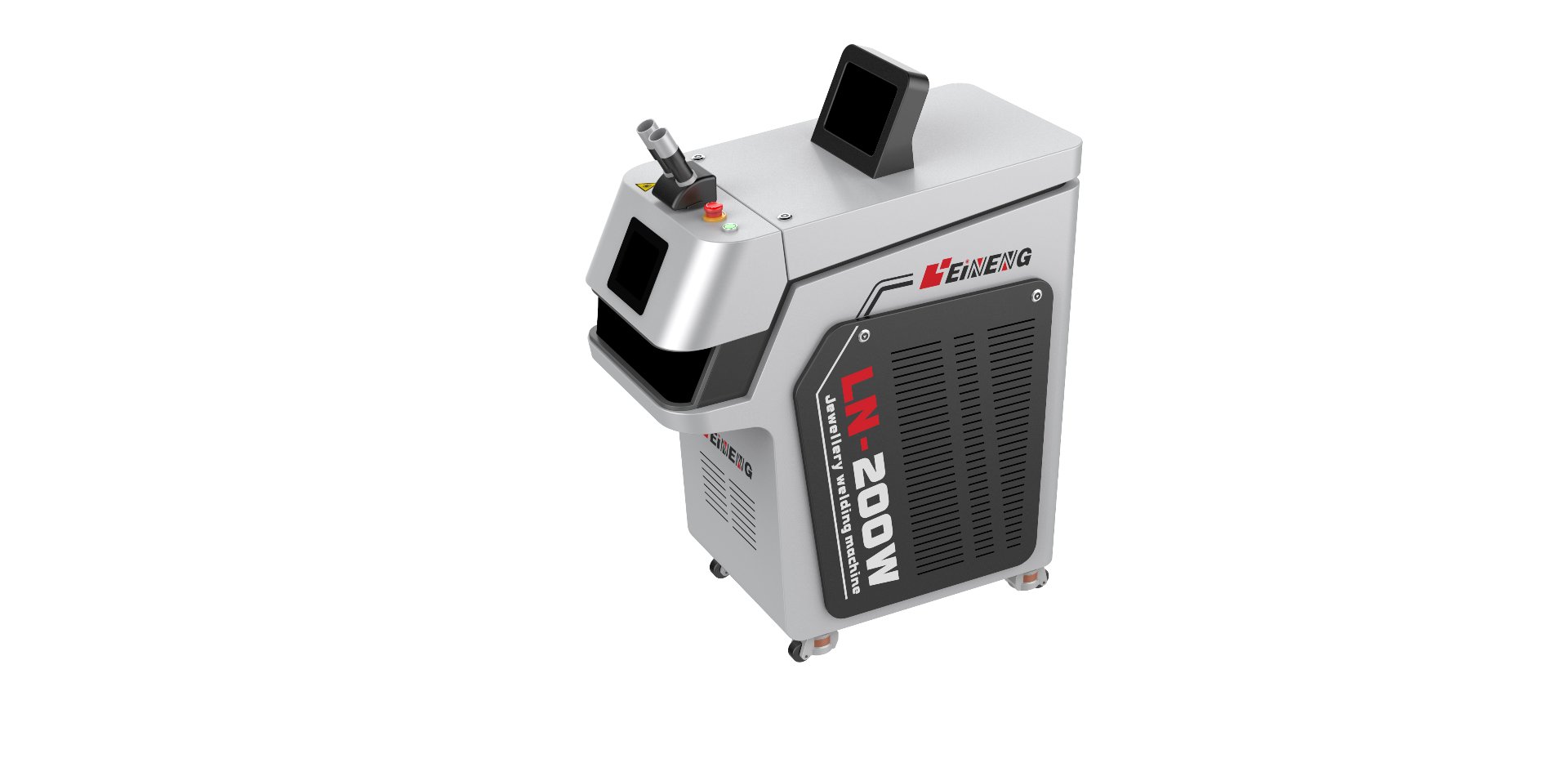

Observation & operation
Cross-cursor aiming, high-speed liquid-crystal light-valve auto-shading, and a deeply customized operation interface — fast to learn, easy to use.

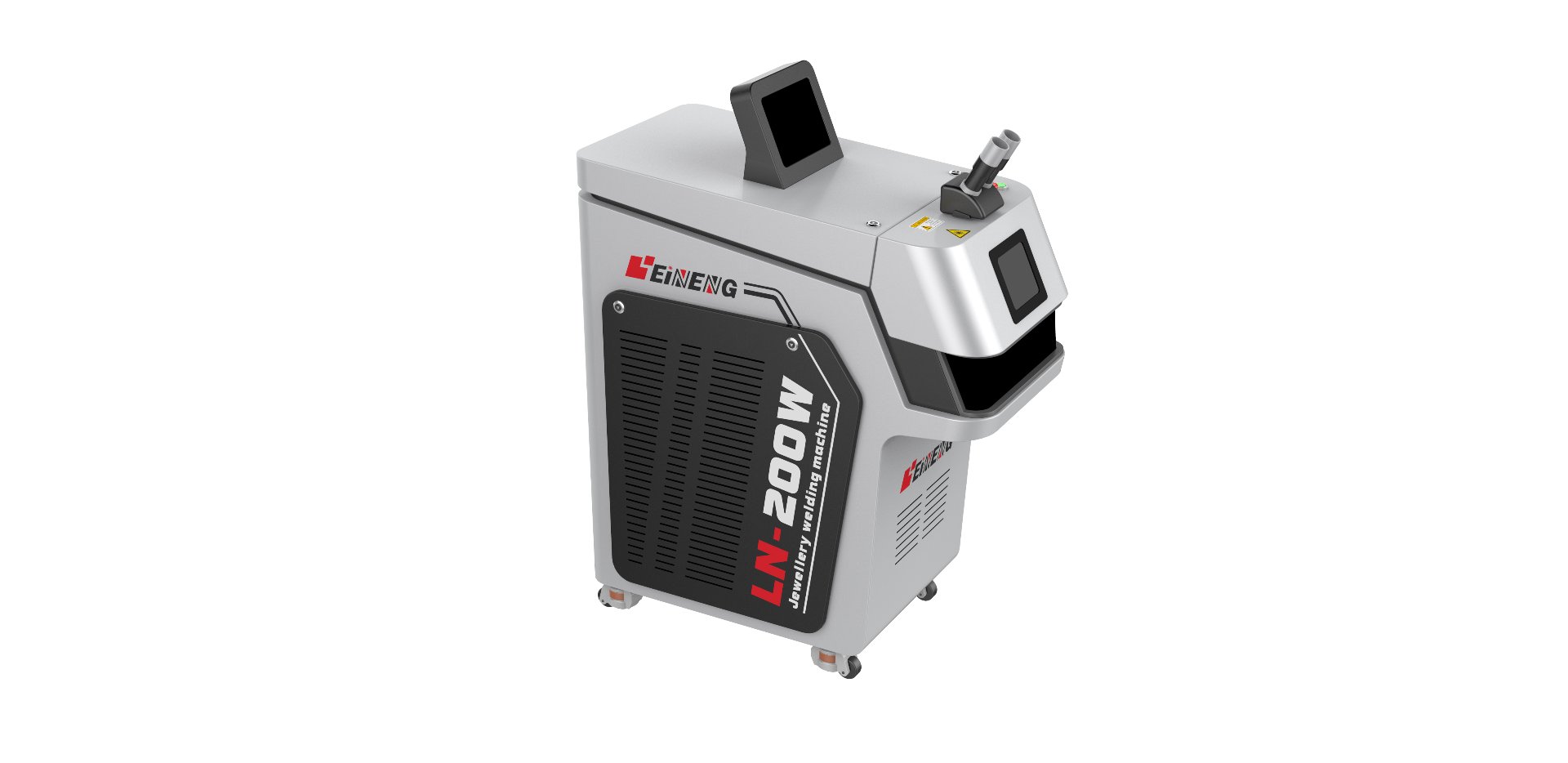

Ergonomic body design
Comfortable observation and operation posture for long shifts; higher daily throughput with less operator fatigue.
Exclusive agency authorization
Sole-authorization export sales channel with free training, bilingual support and a full after-sales maintenance plan.
Materials you can weld
Spot and seam welding of gold, silver, platinum, titanium, copper, aluminum and high-grade steel alloy.
Technical specifications
| Source of laser | High-quality Nd:YAG single-doped laser |
| Wavelength | 1064 nm |
| Laser frequency | 0.1 – 20 Hz |
| Power | Double-voltage adjustable power supply |
| Max. output power | 200 W |
| Max. single pulse energy | 130 J |
| Pulse width | 0.1 – 20 ms |
| Focal spot diameter | Adjustable, 0.2 – 3.0 mm |
| Viewing system | 10× microscope & CCD system |
| Control system | Integrated visual operating system |
| Cooling system | Chiller + wind cooling system |

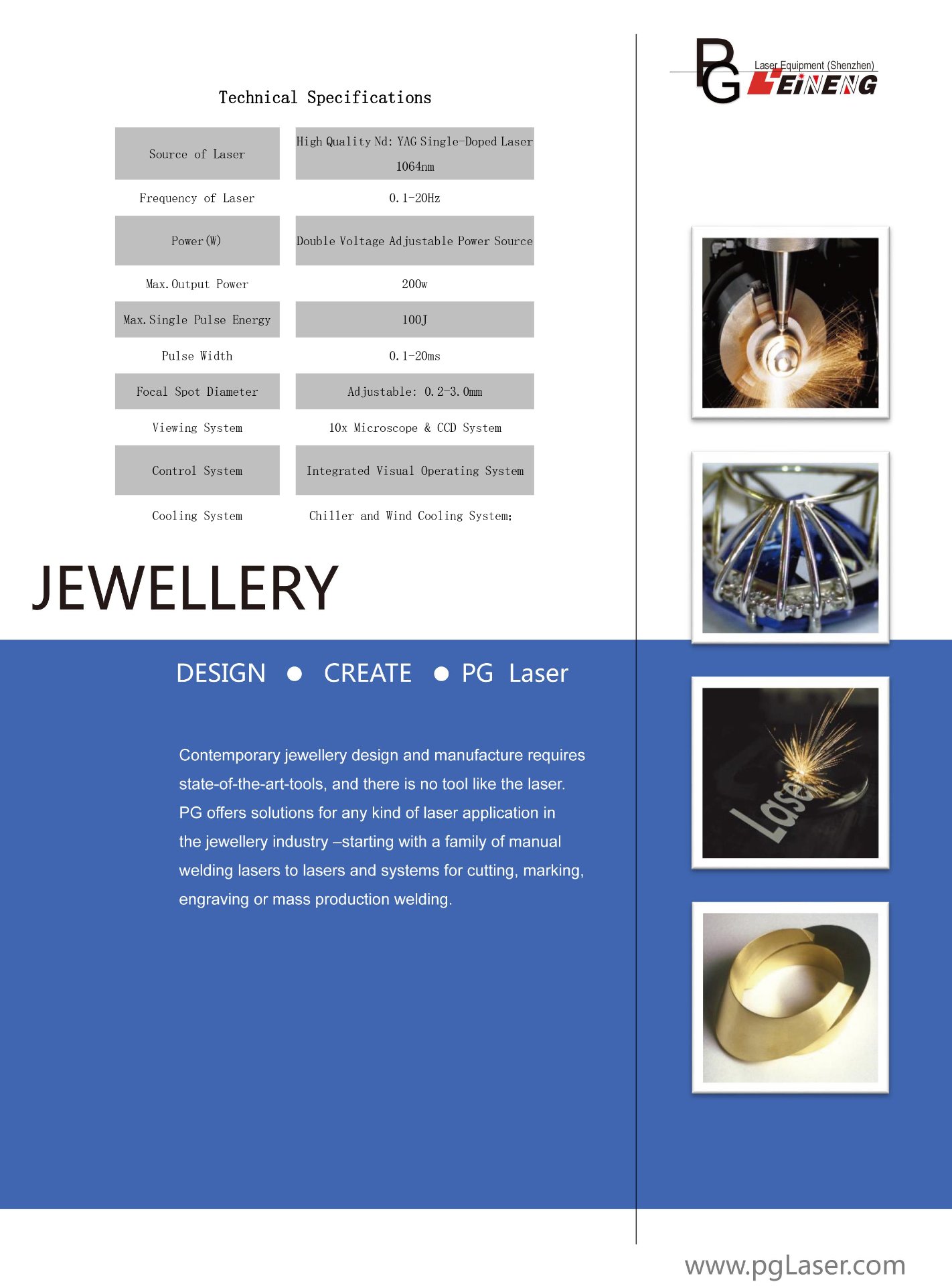

Need the official datasheet?
We will send the full original datasheet and pricing by email or WhatsApp — including delivery lead time to your country.
Also available at 300W
The same jewelry laser welder is built at 300W with 150 joules per pulse, configured to order. Same cabinet, same 2-year warranty, same 72-hour parts dispatch — the differences are the build time (15 days rather than shipping from stock) and the price. If your bench runs batch production, or platinum castings are a large share of your work, it is worth pricing both.
About the brand
The PG-LN-200W is built for us by our manufacturing partner in China and supplied outside China through our own export channel — Guangzhou Centro South Tech — with free training, bilingual (EN/AR) documentation and full after-sales care.
