Welding Lightweight and Hollow Gold Without Melting It

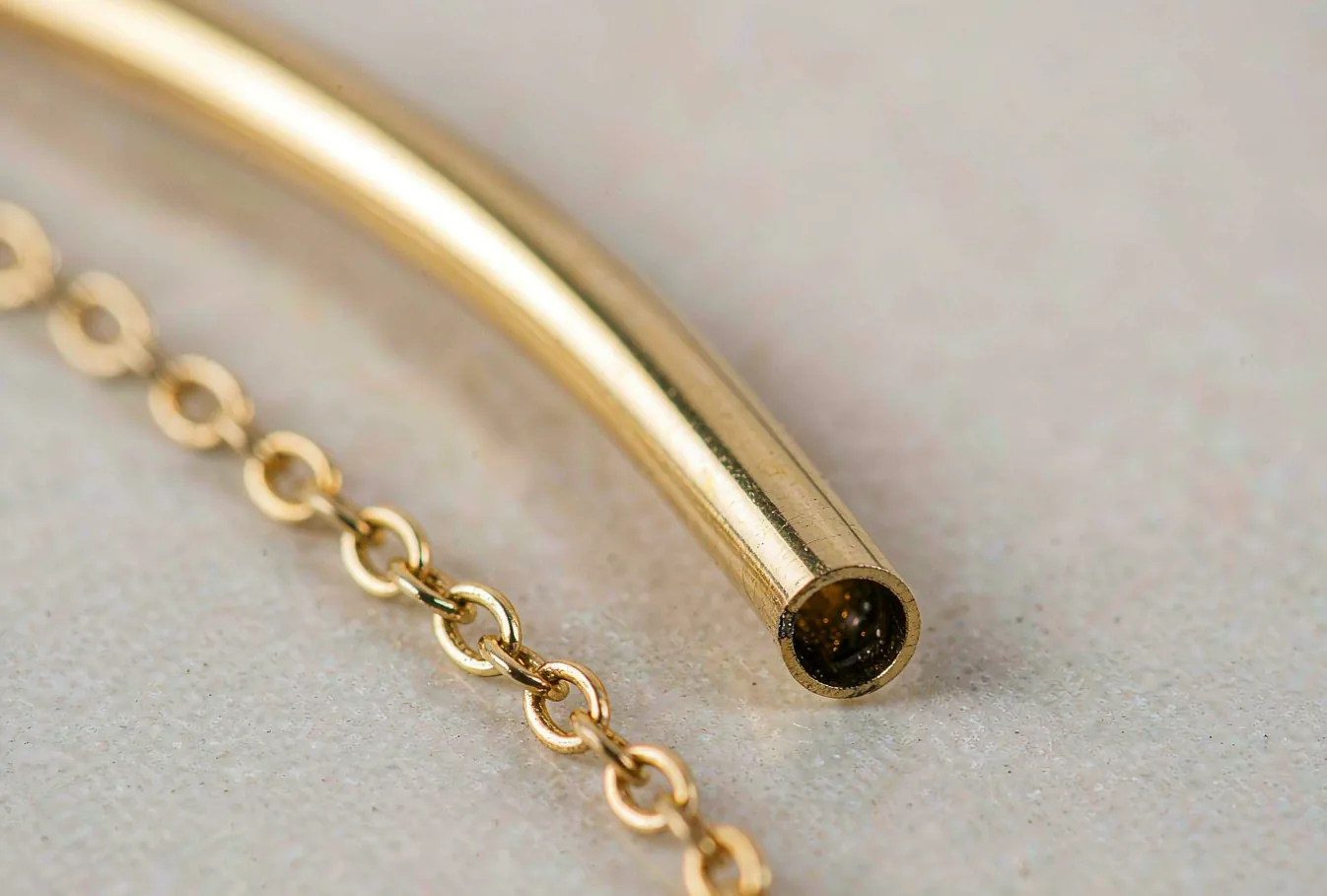

The whole industry is chasing the same trick: look big, use less gold. That means hollow tubes, thin walls, laser-cut filigree, open lattice and 3D-printed structures. For a welder, this is the hardest work on the bench – and the work a torch loses first. Here’s how to do it without melting the piece.

Why thin walls are brutal

A solid ring shank has mass. It soaks up heat and gives you a window to work in. A hollow tube or a 0.3 mm wall has almost none – heat goes in, and within a second the wall collapses or the surface caves. There’s no “flow it in and clean it up later” with a torch here, because by the time solder flows the wall is gone. The fix isn’t a gentler torch; it’s putting far less heat into a far smaller spot.

The settings that save a thin wall

• Tiny spot. Stay at the small end – around 0.1-0.3 mm – so the energy lands only on the joint, not the wall beside it.
• Low energy, very short pulse. You’re tacking, not welding. Two or three small hits you can stop between beat one big one you can’t.
• Tack, move, check, repeat. Build the joint up in spots and let each cool. This is how you keep the tube from sagging.
• Argon on the joint, low flow. Keeps it clean so you’re not tempted to go over it again and add heat.
• Match the alloy. Same karat wire, or the color line shows on a piece you can’t polish hard.

Hold the piece still

A hollow piece is light and moves easily. If it shifts under the pulse you weld the wrong spot, then chase it, then overheat it. Support it properly, use a heat sink where you can, and clamp – the fixture matters as much as the settings on this kind of work.

The failure that shows up later

Over-heating doesn’t always ruin a piece on the bench – sometimes it anneals the metal so it looks fine and then deforms the moment you polish or bend it. On thin gold, the goal is the least heat that still makes a sound joint, every single time.

Practice on scrap tube, not on customer gold

Get a length of the same hollow tube or thin sheet you sell, and dial in your settings on it until the weld holds and the wall stays true. Save those settings in the machine memory. Two minutes of scrap every time is cheaper than one collapsed 22K hollow bangle.
